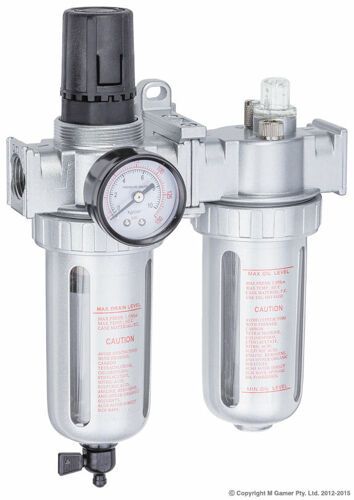

Filter Regulator and Lubricator Control Unit 3/8
Stock Code:
Z080-THBFLR803
Description
Description
Filter Regulator and Lubricator Control Unit 3/8
.
SPECIFICATIONS
Port Size: 3/8" NPT
Max Input Press.: 215 PSI
Output Press.: 7-150 PSI
Measuring Units: PSI, kg/cm2
Max Flow: 88.29 CFM
Operating Temp. Range: 5-60 °C
Drain Capacity: 80 mL
Filter Element: 5 µm
Oil Capacity: 125 mL
SHIPPING WEIGHT: 1.75 Kg
FEATURES
• Convenient drain release
• Extend air tool service life with an
• integrated automatic lubricator
• and water vapor removal filter.
• Steel bowl guards offers
• impact protection
